Single-Use Process Pressure Sensor
  • Single-Use Process Pressure Sensor
  • Single-Use Process Pressure Sensor
  • Single-Use Process Pressure Sensor
Single-Use Process Pressure Sensor

Custom Sensor & Technology Single-Use Process Pressure Sensor

Available to order

Process Pressure Sensors are intended for measuring the dynamic and static pressures of liquids and gases for both single-use and continuous use bioprocessing applications including tangential flow filtration (TFF), bioreactor pressure monitoring, and depth filtration monitoring. A standard M12 connector integrates directly to our PT1 (single channel) and PT4 (four channel) transmitters that include 4-20 mA, Modbus RTU, TMP outputs, and optional remote display.

STANDARD SPECIFICATIONS

General Specifications

  • Pressure Range:  -10 to 100 psi
  • Accuracy for 0 – 50 psi:  +/-2%
  • Accuracy for 51 – 80 psi:  +/-2.5%
  • Accuracy for 81 – 100 psi:  +/-3%
  • Accuracy for -10 – 0 psi:  +/-4%
  • Operating Temperature:  5°C to 40°C
  • Module Input Voltage:  12 – 36 VDC
  • Sensor Input Voltage:  6 VDC
  • Seal Type:  Silicone USP Class VI O-Ring
  • Body Material:  Polypropylene, Class VI
  • Connector Type:  M12 – 4 Pin
  • Connector Cap Material:  Polycarbonate, Class VI
  • Internal Sensor Material:  Polycarbonate & Dielectric Gel
  • Assembly Criteria:  ISO Class 7 Cleanroom
  • Sterilization:  Autoclave (minimum 5x)
  • Packaging:  Standard Double Bag Pack of 10
  • Regulatory and Compliance: USP Class VI, ISO 10993-5, Bacteriostatis & Fungistatis (B&F), Bioburden, USP 88, 161, 661, Endotoxin USP 85, REACH and RoHS compliant (validation guide available upon request)

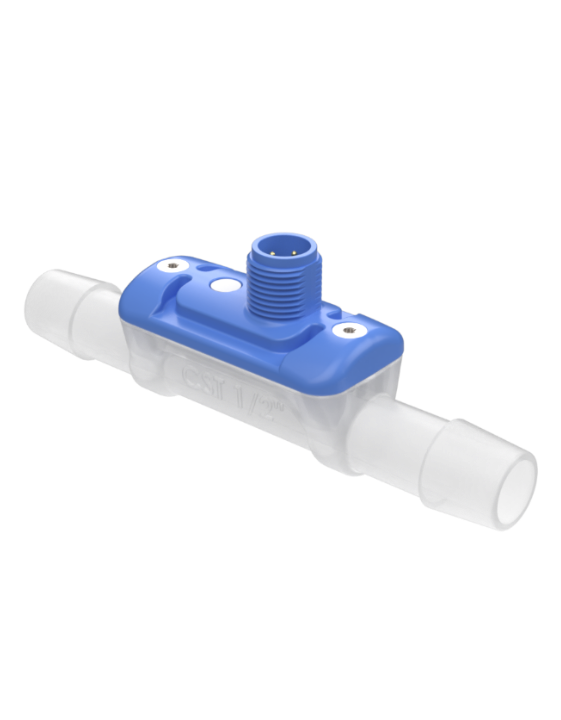

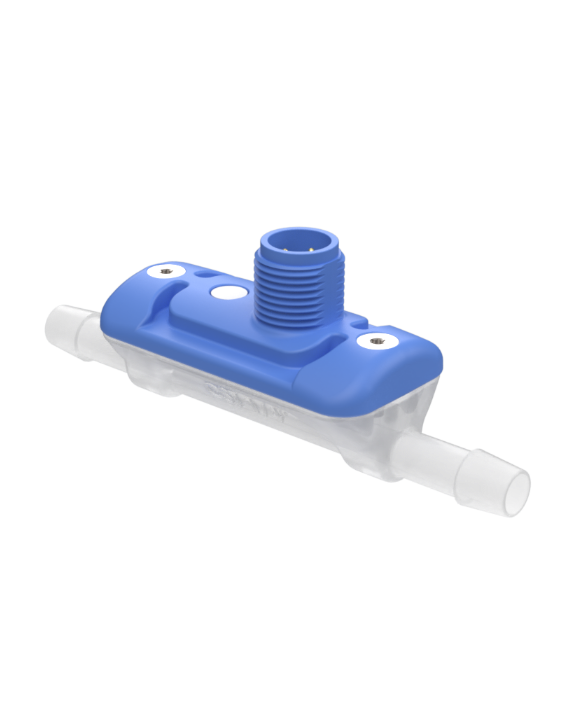

Available Hose Barb Connections

  •  ¼”, ⅜”, ½”, ¾”

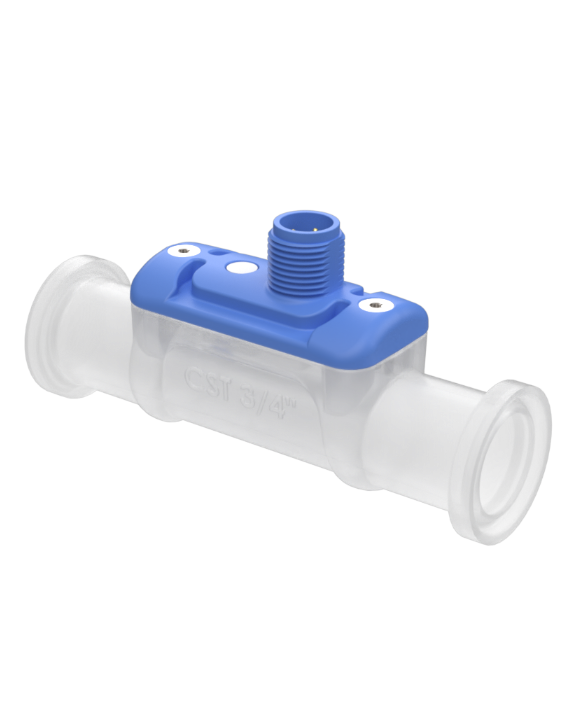

Available Sanitary Connections:

  • ½”, ¾”

.
